Power Diesel Generator

225 - 375 kVA

P375-4

225 to 330 kVA Diesel Generator Sets. As your power needs increase, this cost effective generator set range delivers a powerful performance with world class power density. Compact and durable, they can easily be manoeuvred into position, whatever the installation conditions.

Product Feature

The 225 – 375 kVA Diesel Generator Sets. As your power needs increase, this cost effective generator set range delivers a powerful performance with world class power density. Compact and durable, they can easily be manoeuvred into position, whatever the installation conditions the225 – 375kVA range of generator sets is designed to power your every need. With an enhanced choice of power nodes, this range is engineered for optimum performance in diverse applications. For a life without interruptions, trust FG Wilson.

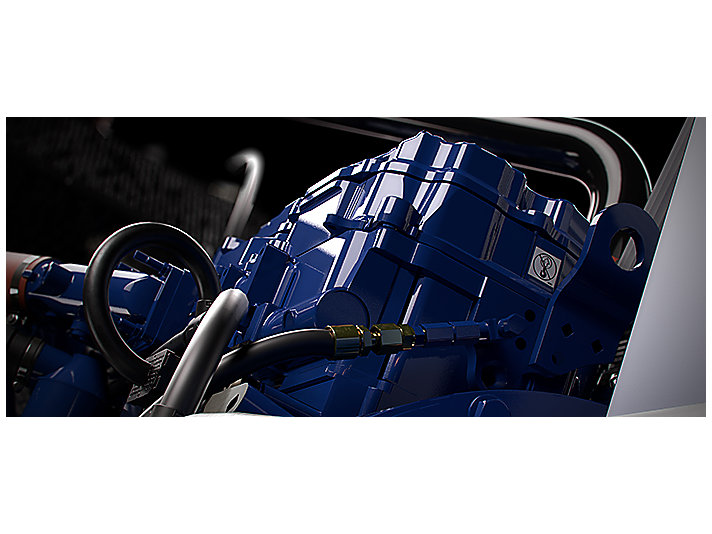

The Perkins 1506 Series engine offer highly competitive performance, fuel economy and EUIIIa Emissions compliance on selected nodes. These engines have been designed to be reliable and to offer low cost of ownership in the wide variety of markets they serve.

Benefiting from a choice of leading alternators, the range incorporates a FG Wilson & Marelli alternator as standard whilst offering a Leroy Somer optional upgrade.

The FG Wilson PowerWizard range of digital control panels, combine straightforward menu navigation with advanced metering and protection technology. They are used in automatic mains failure applications in conjunction with transfer panels. Our PowerWizard range allows you to monitor and control your generator set with ease, whilst ensuring your unit operates within safe parameters and provides important diagnostic information when needed.

Fully prototype tested with certified torsional vibration analysis available

FG Wilson manufactures product in the following locations: Northern Ireland • Brazil • China • India • USA With headquarters in Northern Ireland, FG Wilson operates through a Global Dealer Network.

Product Specifications For P375-4

Generator Set Specifications Engine Specifications
Minimum Rating

338 kVA / 270 kW

Maximum Rating

375 kVA / 300 kW

Emissions/Fuel Strategy

EUIIIa Emissions Compliant

50 Hz Prime

Engine Model

Perkins® 1506D-E88TAG4

Bore

112 mm (4.4 in)

50 Hz Standby

60 Hz Prime

338 kVA / 270 kW

60 Hz Standby

375 kVA / 300 kW

Frequency

60 Hz

Stroke

149 mm (5.9 in)

Governor Type

Electronic

Speed

1800 RPM

Voltage

110-480 Volts

50 Hz Prime Rating

1800 RPM

60 Hz Prime Rating

110-480 Volts

Displacement

8.8l (537 cu. in)

Compression Ratio

16.1:1

50 Hz Standby Rating

1800 RPM

60 Hz Standby Rating

110-480 Volts

Engine

  • Air Cleaner
  • Lube oil drain valve
  • Engine filled with lubrication oil
  • High Coolant Temperature Shutdown
  • Low Oil Pressure Shutdown

Cooling

  • Coolant Drain Valve
  • Fan, Fan drive and battery charging Alternator drive fully guarded to meet EC Machinery Directive
  • Cooling System filled with Coolant mix
  • Radiator and Cooling Fan

Exhaust

  • Exhaust stub pipe and gasket

Fuel

  • 8 Hr Fuel Tank
  • Fuel Fittings for Local and Remote Feed

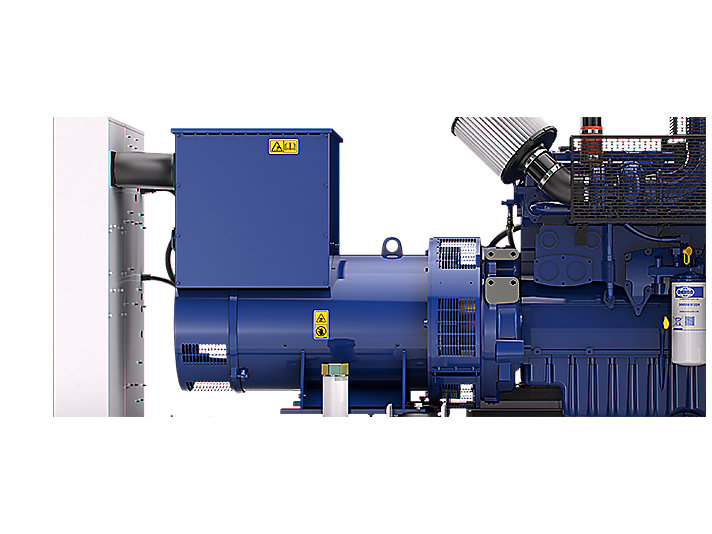

Alternator

  • FG Wilson
  • SHUNT Excitation
  • IP23 Protection
  • Coastal Insulation Protection

Control Panel

  • PowerWizard 1.1+

Mounting

  • Base, Formed Steel with Single wall Fuel Tank
  • Certified Base Mounted Lifting Eyes, and Rear Drag Eyelets
  • Battery Tray and Cables

Exhaust

  • Industrial, Residential, Critical Silencers

Alternator

  • Quadrature Droop Kit
  • Anti-Condensation Heater and Panel Circuitry (AH1)

Control Panels

  • PowerWizard 2.1+ Control Panel (PWT2.1)
  • EasYgen 2500 control panel

Starting/Charging

  • Lead Acid battery (Dry)

General

  • Upgrade to Standard Set for "CE" Certification
  • Compact Skid Base for Open Sets

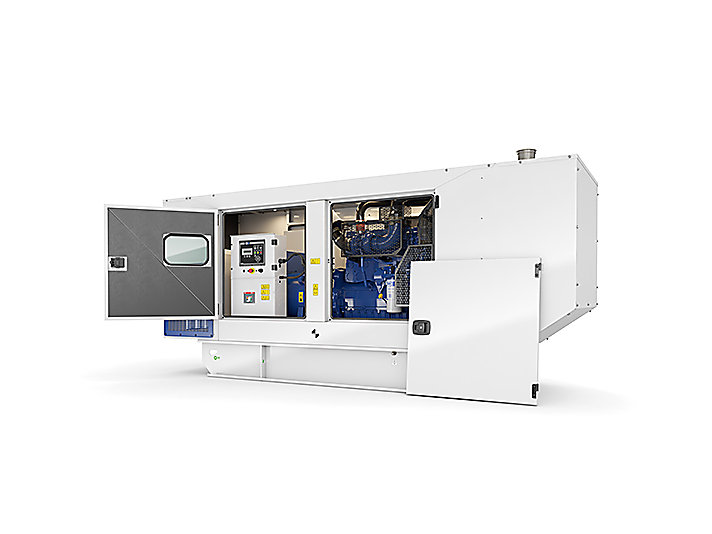

  • Sound attenuated, steel or galvanised enclosure
  • Dual wall base tank

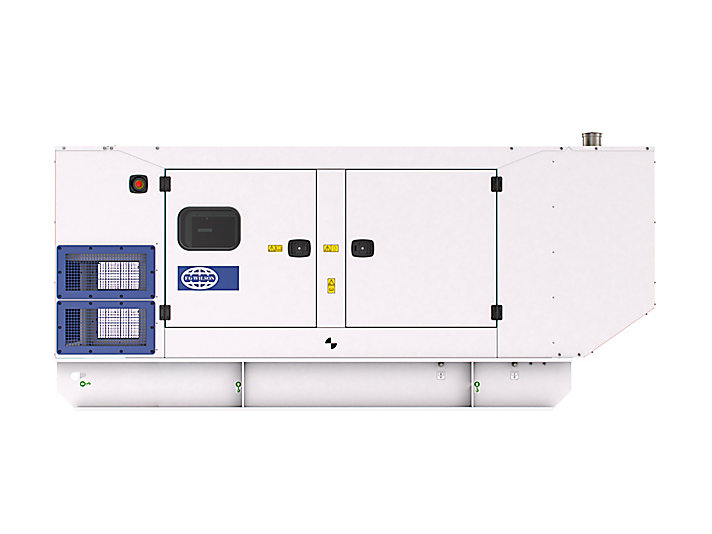

Enclosure

  • Compliance to European Community Directive 2000/14/EC
  • Super sound attenuation for residential areas
  • Totally enclosed exhaust silencing system
  • 50�C High ambient capability available
  • Robust and highly corrosion resistant construction
